# AutomataKit BLDC Driver # AutomataKit BLDC Driver

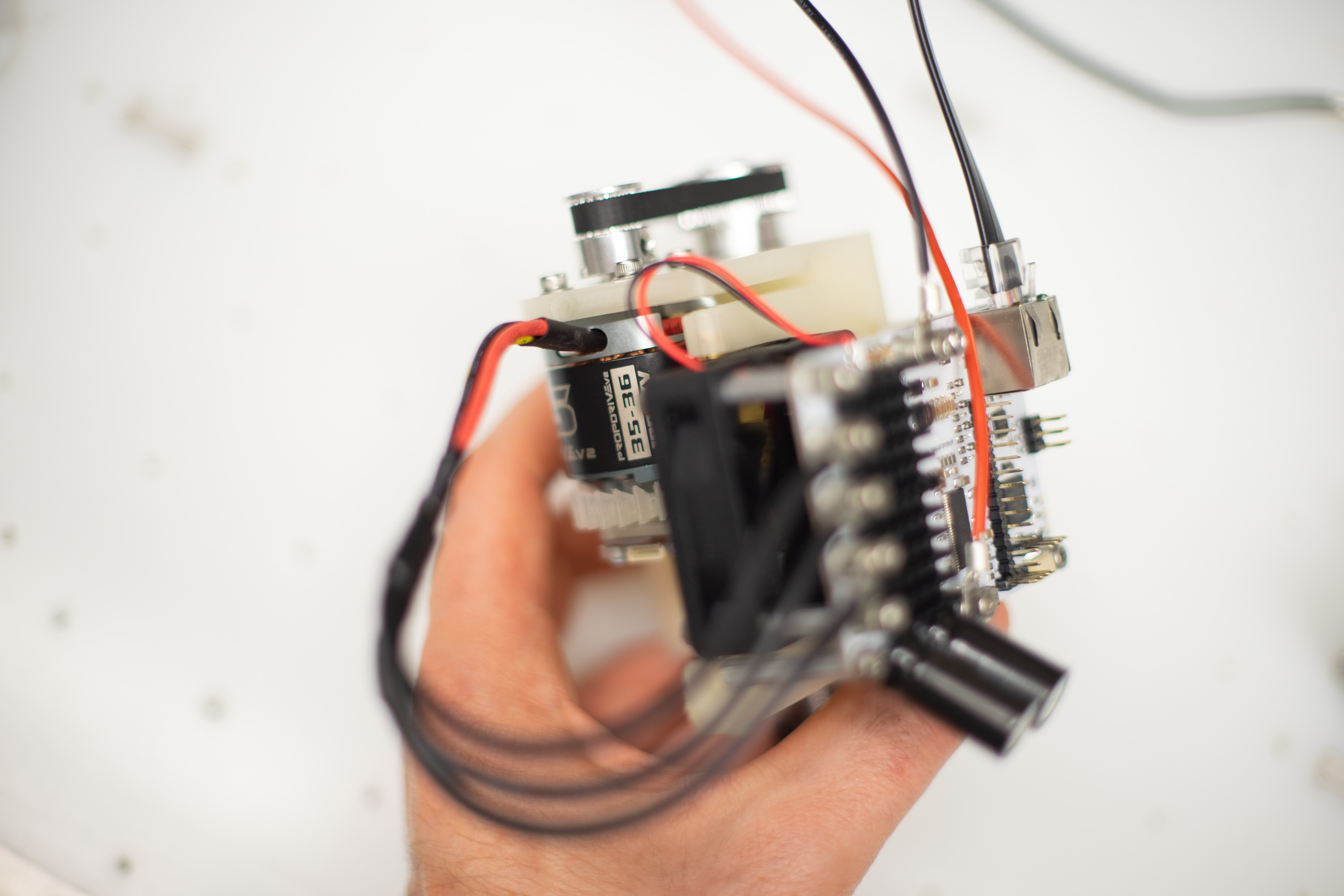

![bldcdriver](images/atkbldc.jpg)
## What ## What
The MMKBLDC Project is my attempt at building a decent controller for Brushless Motors. BLDCs are excellent sources of mechatronic actuation: they're [power dense](https://jakeread.pages.cba.mit.edu/actuators/) and serve the motion control justice present in most state of the art robotics. However, controlling them is non-trivial, and requires the combination of some EE expertise, some control expertise, and some hardware know-how. The MMKBLDC Project is my attempt at building a decent controller for Brushless Motors. BLDCs are excellent sources of mechatronic actuation: they're [power dense](https://jakeread.pages.cba.mit.edu/actuators/) and serve the motion control justice present in most state of the art robotics. However, controlling them is non-trivial, and requires the combination of some EE expertise, some control expertise, and some hardware know-how.
......
...@@ -18,10 +18,10 @@ UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/motors.lbr" ...@@ -18,10 +18,10 @@ UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/motors.lbr"
UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/passives.lbr" UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/passives.lbr"
UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/power.lbr" UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/power.lbr"
UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/sensor.lbr" UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/sensor.lbr"
UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/tag-connect-2030.lbr"
UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries_jake/eagle/sparkfun/SparkFun-Connectors.lbr" UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries_jake/eagle/sparkfun/SparkFun-Connectors.lbr"
UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries_jake/eagle/jake/tag-connect-2050.lbr" UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries_jake/eagle/jake/tag-connect-2050.lbr"
UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries_jake/eagle/marekr/borkedlabs-passives.lbr" UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries_jake/eagle/marekr/borkedlabs-passives.lbr"
UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries/eagle/tag-connect-2030.lbr"
UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries_jake/eagle/sparkfun/SparkFun-DiscreteSemi.lbr" UsedLibrary="D:/Dropbox (Personal)/CBA/doc/libraries_jake/eagle/sparkfun/SparkFun-DiscreteSemi.lbr"
[Win_1] [Win_1]
...@@ -119,7 +119,7 @@ Type="Control Panel" ...@@ -119,7 +119,7 @@ Type="Control Panel"
Number=0 Number=0
[Desktop] [Desktop]
Screen="3840 1080" Screen="1920 1080"
Window="Win_1" Window="Win_1"
Window="Win_2" Window="Win_2"
Window="Win_3" Window="Win_3"
...@@ -38,6 +38,8 @@ Got this running, feels pretty mediocre. I need to understand commutation a bit ...@@ -38,6 +38,8 @@ Got this running, feels pretty mediocre. I need to understand commutation a bit
https://geekshavefeelings.com/posts/sensorless-brushless-cant-even https://geekshavefeelings.com/posts/sensorless-brushless-cant-even
bulletproof commutation is encoder-based - low speed, at stall, with variable motors, etc, electromechanical sensing is always buggy. encoder perhaps not fast enough to commutate every cycle, so we need to write a filer / estimator that continues rolling the commutation cycle forward with only periodic input from the encoder - i.e. we contantly estimate speed, update that estimation every time we sample the encoder, commutate according to that estimation
# Notes # Notes
- read shane colton's pdf on sensorless field oriented control, and his park-transform free FOC solution: sounds cool. finish phase search algorithm. - read shane colton's pdf on sensorless field oriented control, and his park-transform free FOC solution: sounds cool. finish phase search algorithm.
......
