new cad for new desktop situation

parent 24dd760e
Branches
No related tags found
No related merge requests found
File added
This diff is collapsed.

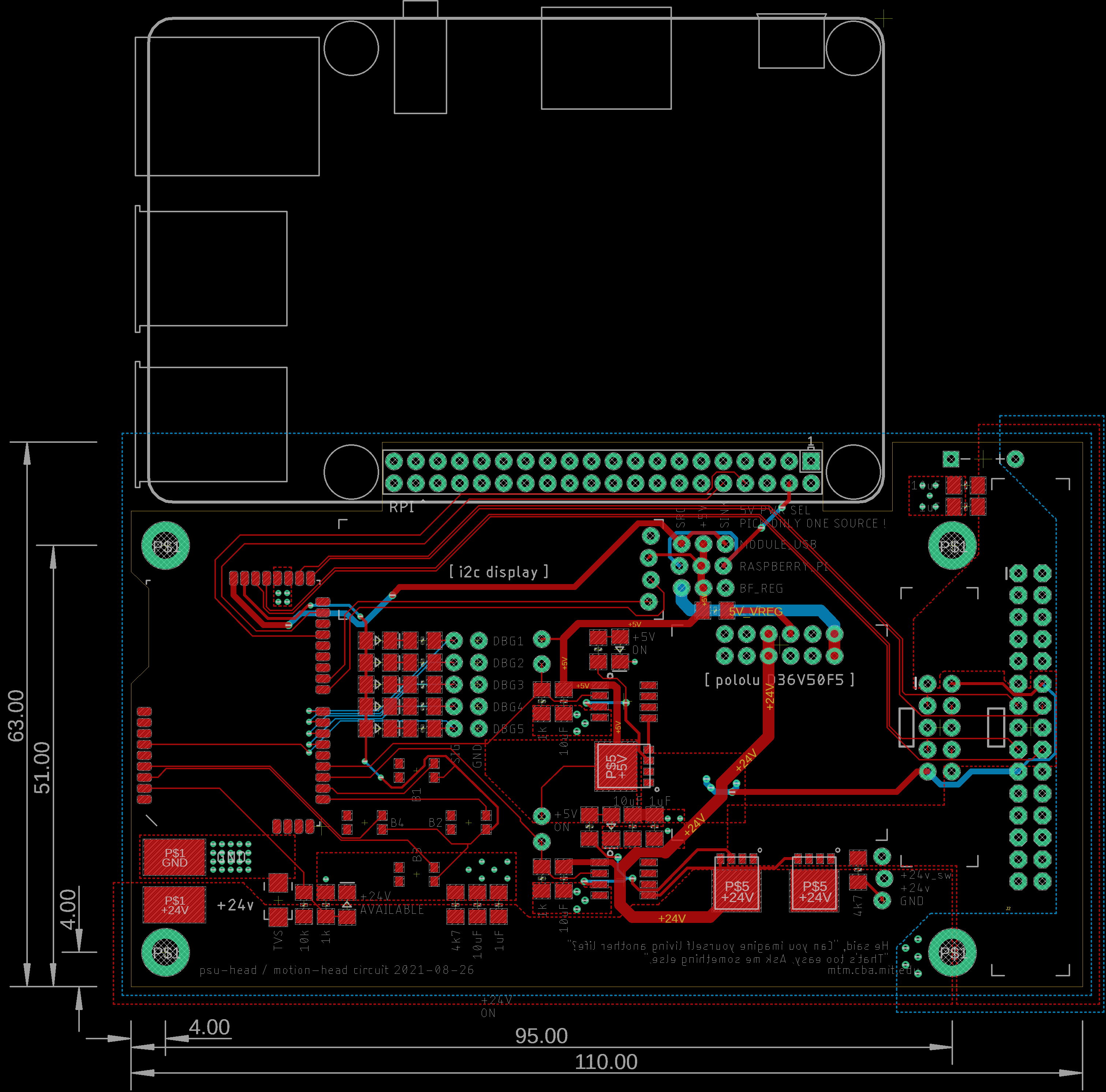

log/2021-08-26_routed.png

282 KiB | W: | H:

log/2021-08-26_routed.png

309 KiB | W: | H:

log/2021-08-26_routed.png
log/2021-08-26_routed.png
log/2021-08-26_routed.png
log/2021-08-26_routed.png
  • 2-up
  • Swipe
  • Onion skin
......@@ -89,6 +89,14 @@ Damn - sent it out but I've just noticed that I don't have any bonus bypass capa
Did the update, have 7 added capacitors.
## 2021 08 29
Drawing the CAD now, I am going to get set to do the RPI thing, I have 11mm from the bottom of the RPI PCB to the bottom of this PCB. I'm going to leave off a full display integration for later... probably will just end up using the RPI tangentially to run permanent-ish demos in the CBA basement.
Then the scheme here is to pin the face of the PSU (backside, I guess: where the four M4 mounts are) with the RPI and this PCB, then mount onto the side M4 sets whatever mount I want: a desk stand with feet (four of them, maybe? kinematic blasphemy), or a pin-to-extrusion setup.
Alright, this is fine. Not the most beautiful of devices. Onwards.
## Part Purchase
- pololu https://www.pololu.com/product/4091 5vreg 7a
......
