PSU Baseboard / Bus Head

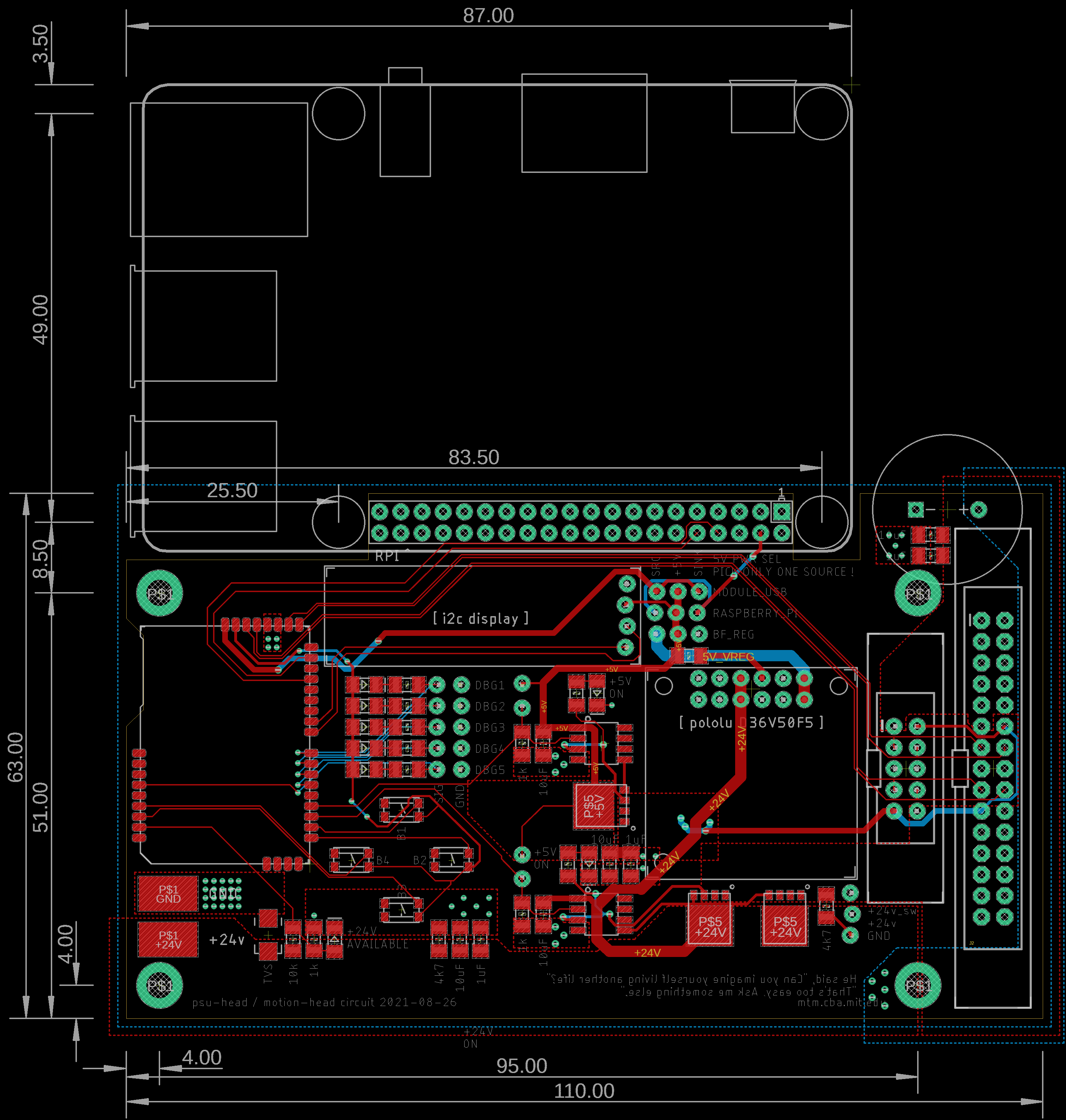

This is a circuit & mount for a small power supply and embedded system bus-head for the uart-clocked bus.
What's Up:
- uses the module
- breaks out 24V 350W & UCBus on one 2x15 IDC
- second 24V 40W UCBus channel available
- RPI mount available
- RPI UART lines plumbed
- 5V 2A regulator footprint to power RPI from 24V PSU
- I2C Display Module footprint available
- BFCs & Filtering available
Firmware
I use this board mostly as the 'coordinator' for modular motion systems, firmware is here and uses platform.io to run, see this guide to build and load code.
