PSU Baseboard / Bus Head

This is a circuit & mount for a small desktop DC PSU and embedded system bus-head. Documentation is sparse.

TODO

• add CAD for PSU mount here,
• add image
• revision circuit for:
  • solder jumpers default shut for 5v usb-to-bus
  • clear LED indication of 24v presence, 5v presence on bus

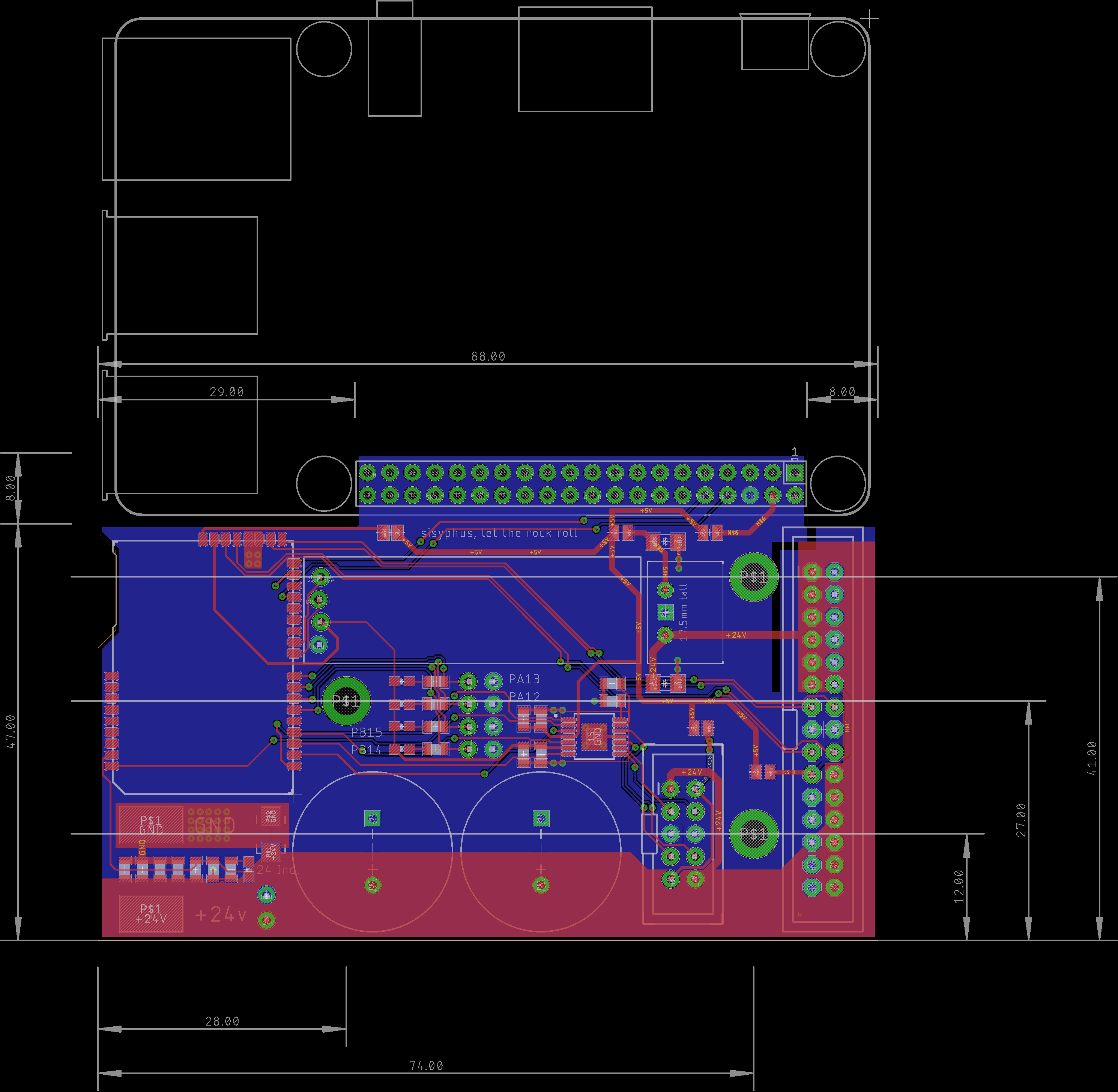

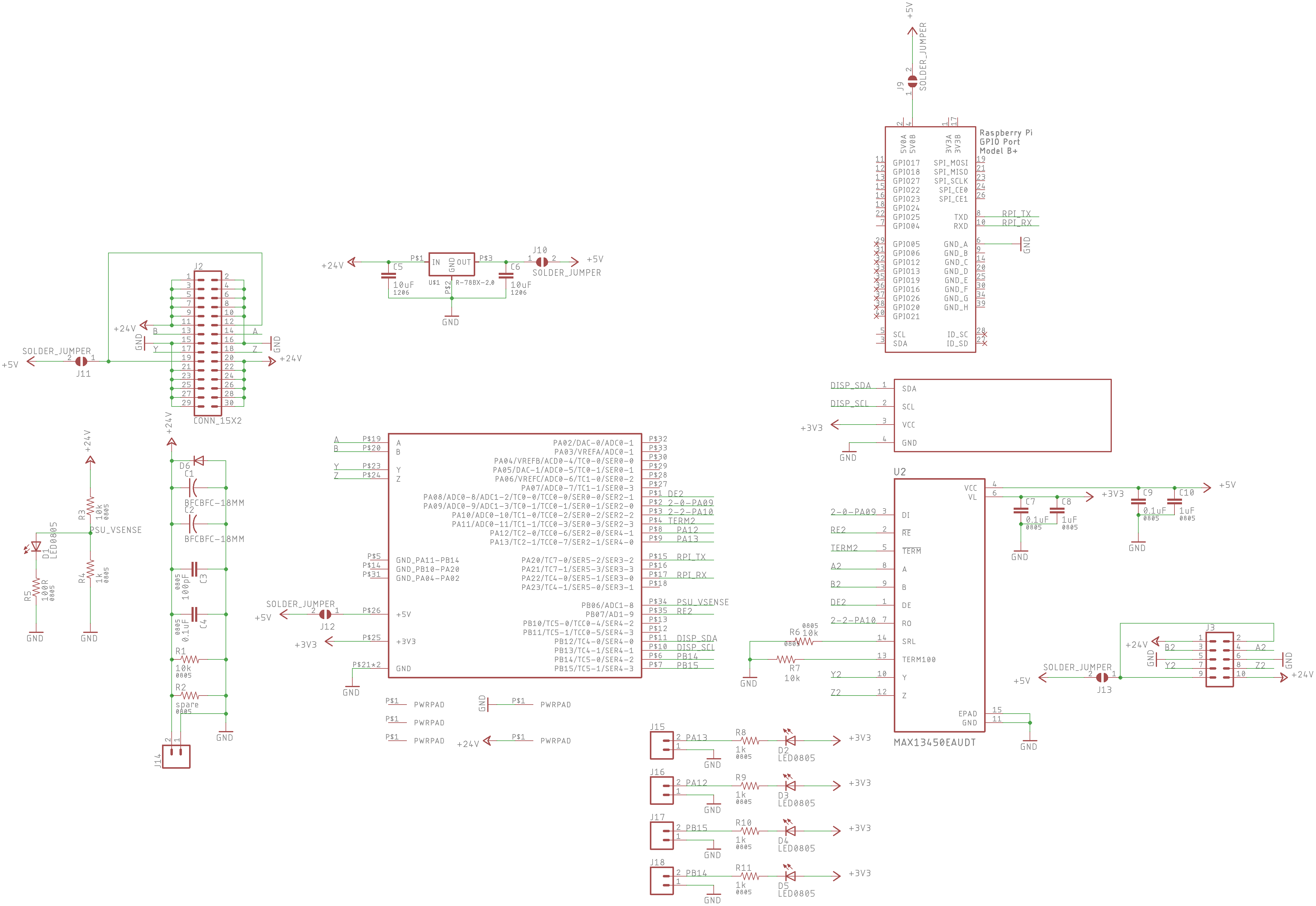

What's Up:

• uses the module
• breaks out 24V 350W & UCBus on one 2x15 IDC
• second 24V 40W UCBus channel available
• RPI mount available
  • RPI UART lines plumbed
  • 5V 2A regulator footprint to power RPI from 24V PSU
  • I2C Display Module footprint available
  • BFCs & Filtering available

BOM

Coming...
